This is an electronic version (Excel sheet) of trip sheet from drilling formulas blog. The trip sheet can be used for both trip in hole and trip out of hole.
Please check out this link below to download.
Trip Sheet
1. When you open the file, you will see the screen like this.

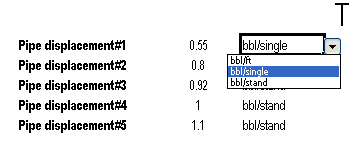

2. First of all, you need to input pipe displacement. This file allow you to input 5 types of pipe displacement and the displacement can be in bbl/single, bbl/ft or bbl/stand.
3. On the right side of the file, you will see three shaded cells like this. The yellow mean you must manually input data. The blue one is an automatically calculated cells which you cannot change it. The last one is green showing you that you need to select value from the list which comes from pipe displacement values that you input as per step no 2.
4. The file will show you how much you need each ft/stand/single and show total cumulative required. Once you input the real figure, the file will show accumulative volume and tell you that you may gain/loss how many barrels. There are two columns that you can input the trip tank volume. One is from the rig sensor and another one is volume from mud logger trip tank. Therefore, you can compare the different between two separate sensors which help you cross check each other figures. T
Please try to put the number and play with the file for more understand and I wish this file would be advantageous for your job.
